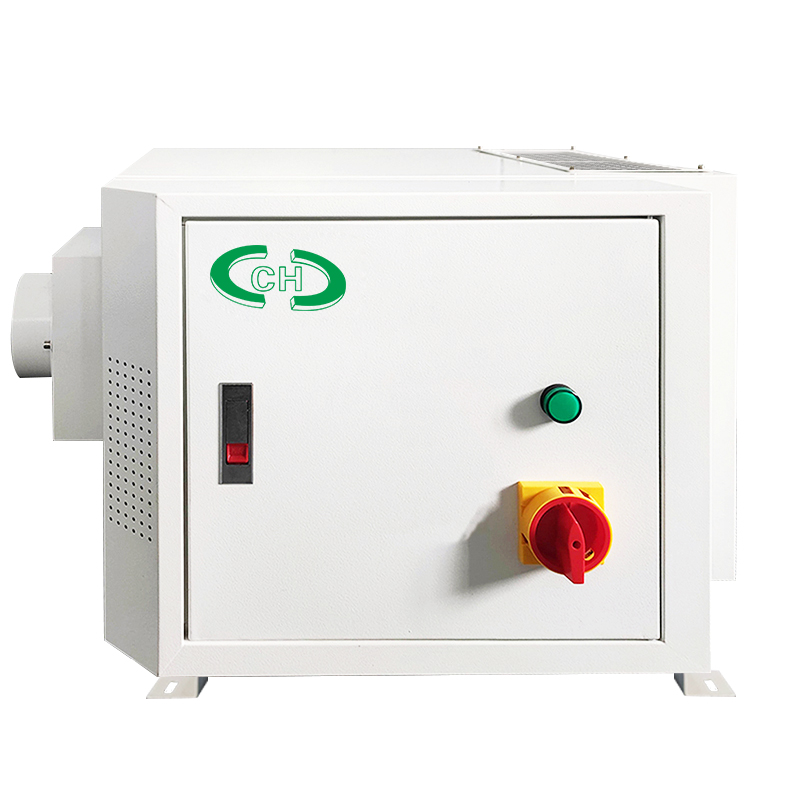

oil mist collector DMS series

Model：DMS-10/15/20
Power Supply：3phase380V/220V 50HZ
Power：180/290/500W
Air Volume：8/15/20m³/min
Product description: oil mist collector, mist collector, Oil Mist Filters, chungho DMS series.
INQUIRY

Large air volume and low energy consumption Small size and light weight High efficiency purification factory prices high quality

Air Volume(m3/h)	600~1200
rated power（kw）	0.18~0.5kw
Air pressure ( pa )	1000~1400
Noise (Db)	60~68
Suction diameter ( mm )	125~200

Widely used in the machining industry such as: machining centers, CNC lathes, milling machines, drilling and tapping machines, engraving and milling machines, walkers, sharpeners, cleaning machines, etc., to solve the problem of collecting and purifying various machine oil mist.

FEATURE

Large air volume, low energy consumption Equipped with energy-saving and high-efficiency fans, large air volume can be achieved with low energy consumption. High precision and high efficiency purification ·Built-in several layers of filter cotton to ensure filtration efficiency. ·According to the working conditions, different post-mounted high-efficiency filters can be selected to ensure a better filtering effect. Small size, flexible installation ·DMS adopts a horizontal structure design, which is small in size and does not take up too much space. ·The installation is flexible and diverse, it can be installed on the top or beside the machine tool.

WORKING PRINCIPLE

·After the air containing oil mist is sucked in under negative pressure, the oil mist is collected by the filter material, and the separated clean air is discharged.

·With the development of industrial filtration technology, the filtration efficiency of oil mist purifiers has also been significantly improved, and it is currently possible to achieve effective purification of highconcentration oil fume.
